The following diagrams illustrates the mounting section details. Please note the mounting related kits including mounting strap, saddle mounting bracket and lower mounting bracket are NOT included in SKU: PAB 12-009 Air Dryer AD-IP Replaces 065612.

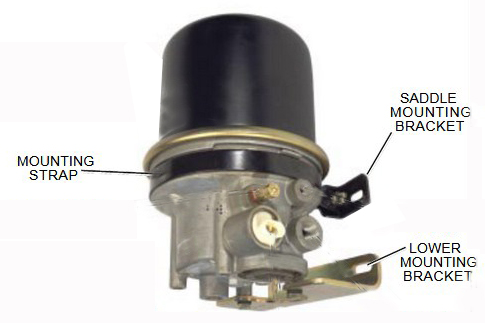

Diagram #1 Mounting Kits (not included)

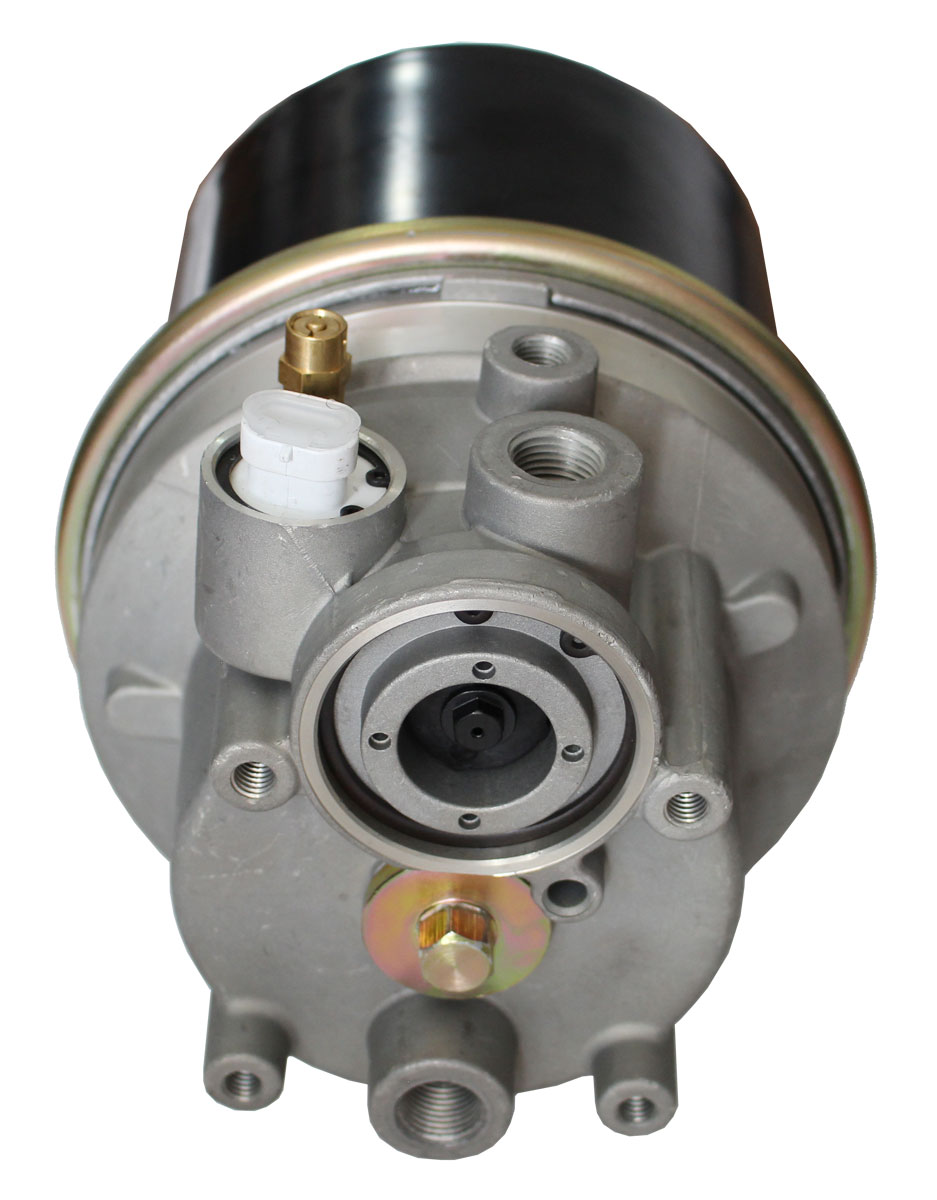

Diagram #2 Lower Mounting View
