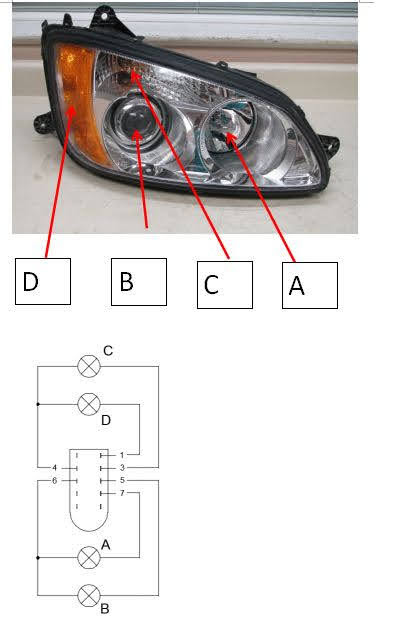

The following diagram provides the wire connection details for Kenworth T660 headlights including but not limited to the following SKUs:
A - High Beam
B - Low Beam
C - Day Running Light/Turn Signal Light
D - Parking Light
Wire Connection Diagram for Kenworth T660 Headlights Print
